Product Details
Place of Origin: China
Brand Name: YINGKANG;FLYING TIGER
Model Number: SS-003
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: $3.45-3.50
Packaging Details: Paper tube sleeve + PE stretch film + thickened waterproof kraft paper + PP woven bag
Delivery Time: 7-15 work days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1000 square meter-7days
Product Name: |
Stainless Weld Mesh |
Key Words: |
304 Grade Stainless Weld Mesh |
Product Alias: |
Stainless Steel Welded Wire Panels |
Meterial: |
304 Grade |
Color: |
Silver |
Usage: |
Animal Cage |
Size: |
SS304‑12.7×12.7mm‑1.2mm‑1.0m × 30m |
Packing: |
Paper Tube Sleeve + PE Stretch Film + Thickened Waterproof Kraft Paper + PP Woven Bag |
Product Name: |
Stainless Weld Mesh |
Key Words: |
304 Grade Stainless Weld Mesh |
Product Alias: |
Stainless Steel Welded Wire Panels |
Meterial: |
304 Grade |
Color: |
Silver |
Usage: |
Animal Cage |
Size: |
SS304‑12.7×12.7mm‑1.2mm‑1.0m × 30m |
Packing: |
Paper Tube Sleeve + PE Stretch Film + Thickened Waterproof Kraft Paper + PP Woven Bag |
Ss316 Stainless Steel Mesh Fencing For Industrial Partition Mesh

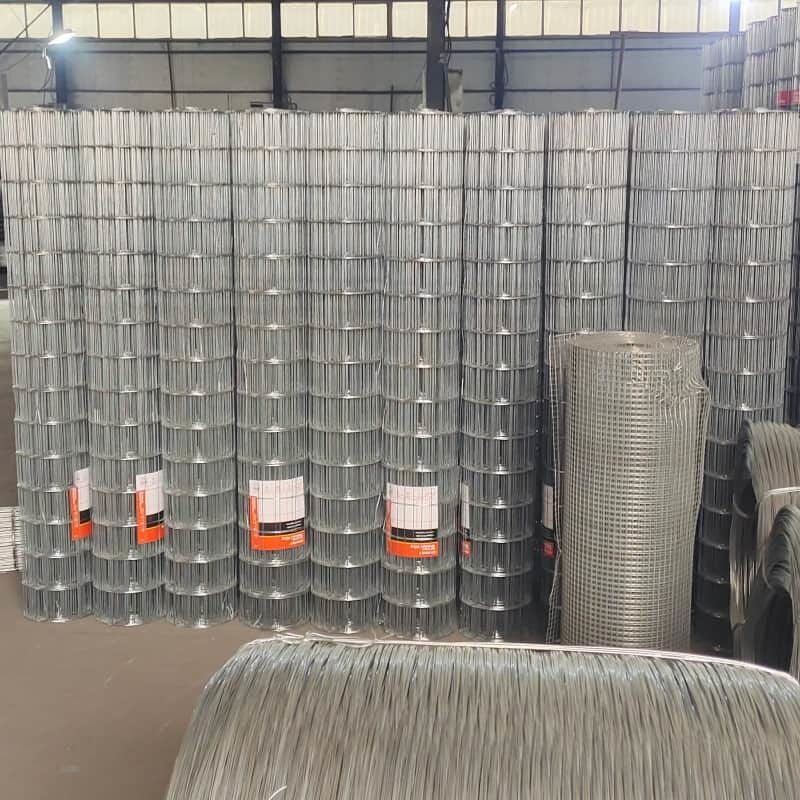

304 Grade Stainless Weld Mesh for Animal Cage is a durable, hygienic enclosure material manufactured through electric resistance welding technology, specially designed for animal husbandry and pet housing applications. Fabricated from AISI 304 grade stainless steel wire, it features uniformly aligned grid openings and firmly fused weld joints that deliver high structural rigidity and impact resistance, able to withstand gnawing, scratching and light impact from animals without deformation. Compared with galvanized or plastic-coated mesh alternatives, it offers better oxidation resistance and compatibility with regular cleaning and disinfection procedures in typical breeding environments, reducing the risk of surface degradation and contamination caused by long-term exposure to animal waste, moisture and disinfectants. Its open mesh structure ensures sufficient air circulation and natural light penetration, creating a more comfortable and healthy living environment for animals while maintaining clear observation visibility for breeders.
This animal cage weld mesh is available in a range of practical specifications to suit different animal sizes and housing requirements. Common wire diameters range from 1.0mm to 2.5mm, and standard mesh openings include 12.7mm, 25.4mm and 50.8mm, with finer mesh options available for small animals or young offspring to prevent escape. It is supplied in both roll form with standard widths of 0.9m, 1.0m and 1.22m at 30m length, and pre-cut panels in common cage dimensions for direct fabrication. While 304 stainless steel performs well in most indoor and outdoor animal housing environments, surface discoloration or gradual corrosion may occur over extended service time, especially with continuous exposure to highly acidic waste, concentrated disinfectants or coastal salt air, and actual service life will vary according to specific feeding and maintenance conditions.
As a specialized cage material, this welded wire mesh serves a wide range of animal rearing and containment scenarios. It is widely used to fabricate breeding cages for poultry, rabbits and small livestock, pet enclosures for cats and dogs, laboratory animal housing facilities, and isolation barriers for aquaculture and zoo exhibits. The smooth welded surface has no sharp burrs, which avoids scratching or injuring animals during daily activity. It can be easily rinsed and sanitized to reduce bacterial growth, supporting hygienic breeding management. Additionally, the mesh can be cut, bent and assembled into various cage shapes and sizes on site, and damaged sections can be replaced separately, which lowers long-term maintenance costs for breeding facilities.
| Material | 304, 316, 316L |
| Mesh | 1", 2",3", 4", 1X2'', 2"X3", 2"X4", 1''/2'', 3''/4", 3''/4", 3''/8", 5''/8'' |
| Wire Diameter (BWG) | 14G,15G,16G,17G,18G,19G,20G,21G,22G,23G,24G |
| Surface Treatment | PVC coating,hot dip galvanized,electro galvanized |
| Color | Silver, black, gray, green,silver-gray |
| Packaging Method | Paper tube sleeve + PE stretch film + thickened waterproof kraft paper + PP woven bag |
| Usage | Used for protection, partition, animal cages and building reinforcement |
![]()
![]()
![]()
