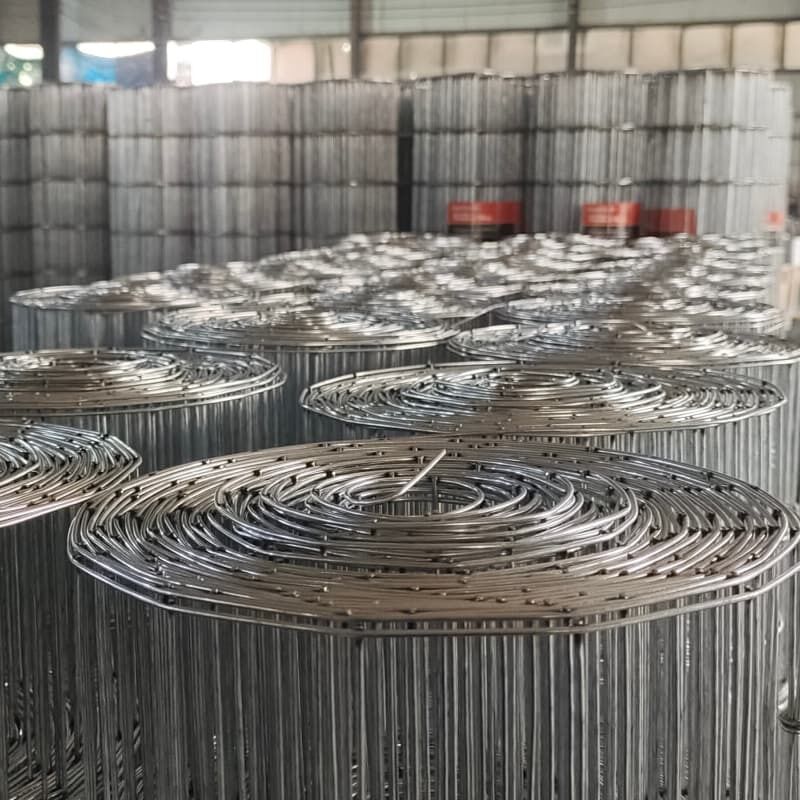

304 Grade Stainless Steel Welded Wire Mesh For Machine Guard

304 Grade Stainless Steel Welded Wire Mesh for Machine Guard is a reliable industrial safety component fabricated by electric resistance welding technology. With uniformly aligned grid openings and firmly fused welding joints, the mesh forms a sturdy physical barrier between on-site operators and moving machinery parts, effectively lowering the risk of accidental contact and containing flying metal chips, coolant splashes or scrap debris during production. Made from AISI 304 grade stainless steel wire, it offers better oxidation resistance and mild corrosion resistance than carbon steel alternatives in typical workshop environments. Its open mesh structure also maintains sufficient air circulation and clear visibility of equipment operation, balancing protective performance with daily operational convenience.

This machine guard mesh is available in a variety of practical specifications to match different equipment scales. Common wire diameters range from 1.2mm to 3.0mm, and standard mesh openings include 12.7mm, 25.4mm and 50.8mm to cover both fine and coarse protection needs. It is supplied in roll form with standard widths of 1.0m, 1.22m and 1.5m at a standard length of 30m, as well as flat panel form such as 1.0m×2.0m and 1.22m×2.44m. While 304 stainless steel performs well in dry or moderately humid indoor settings, surface discoloration or gradual corrosion may occur over extended service time, particularly under harsh conditions like high salinity, strong acid or alkali exposure, and actual service life varies with specific working environments.

This welded wire mesh is widely applied across industrial manufacturing scenarios as a versatile protective solution. It is commonly fabricated into safety guards for lathes, milling machines, stamping presses and packaging equipment, and also serves as perimeter fencing for automated production lines, robotic work cells and conveyor systems. Unlike fully enclosed metal shields, the mesh structure does not block heat dissipation from running equipment, avoiding potential overheating issues. It can be easily mounted on supporting frames with standard fasteners, and can be cut and adjusted on site to fit custom equipment dimensions, bringing flexibility for installation and later maintenance.
