60*105mm Stainless Steel Ferrule Rope Mesh Diamond Stair Railing Infill Netting Safety

Basic Information
Place of Origin: China
Brand Name: Yuntong
Certification: CE,SGS
Model Number: YT-2080F
Minimum Order Quantity: 1 Square Meter
Price: Negotiable
Packaging Details: Paper carton inside,then wooden case outside
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 2000 square meters per week
Product Name: Stair Railing Infill Stainless Steel Rope Netting Mesh Size: 0.92*1m,0.65*1m,Customized
Mesh Orientation: Horizontal , Vertical Angle: 60 Degree Is Common
Color: Black,stainless Steel Primary Color,etc. Rope Diamond: 1.2mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm
Mesh Opening: 40x40mm,60x60mm,80x80mm,100x100mm Panel Shape: Rectangle, Square, Triangle, Parallelogram
High Light:

1.2mm stainless steel ferrule rope mesh

,

60*105mm stainless steel ferrule rope mesh

,

stair railing infill ferrule rope mesh

60*105mm Diamond Stair Railing Infill Stainless Steel Rope Netting For Safety





Stainless Steel Rope Netting Introduction:



Diamond stainless steel rope netting mesh balustrade railing infill is constructed from non corrosive stainless steel cables which are stretched and pre-installed on quality welded tubular frame. With simple but durable structure, stainless steel rope netting is preferred to all types of balustrade applications from residential, semi-public to public spaces. Typically applications for stainless steel rope netting for safe mesh balustrade are bridges, path, stairs and balcony.



Specifications Of Stainless Steel Rope Netting :



Stainless Steel Rope Netting Catalog
Item No.s Cable Structure Cable Diameter Mesh Eye Size(W x H) Normal Break
    inch mm inch mm lbs
YT-3212F 7x19 1/8 3.2 4.75 x 8.23 120 x 207.8 1600
YT-3210F 7x19 1/8 3.2 4 x 6.9 102 x 156 1600
YT-3290F 7x19 1/8 3.2 3.55 x 6.15 90 x 156 1600
YT-3276F 7x19 1/8 3.2 3 x 5.2 76 x 131.6 1600
YT-3251F 7x19 1/8 3.2 2 x 3.46 51 x 88.3 1600
YT-2410F 7x7 3/32 2.4 4 x 6.9 102 x 176.7 920
YT-2490F 7x7 3/32 2.4 3.55 x 6.15 90 x 156 920
YT-2476F 7x7 3/32 2.4 3 x 5.2 76 x 131.6 920
YT-2460F 7x7 3/32 2.4 2.4 x 4.16 60 x 104 920
YT-2451F 7x7 3/32 2.4 2 x 3.46 51 x 88.3 920
YT-2076F 7x7 5/64 2.0 3 x 5.2 76 x 131.6 676
YT-2060F 7x7 5/64 2.0 2.4 x 4.16 60 x 104 676
YT-2051F 7x7 5/64 2.0 2 x 3.46 51 x 88.3 676
YT-2038F 7x7 5/64 2.0 1-1/2 x 2.6 38 x 65.8 676
YT-1676F 7x7 1/16 1.6 1.2 x 2.08 76 x 131.6 480
YT-1651F 7x7 1/16 1.6 2 x 3.46 51 x 88.3 480
YT-1638F 7x7 1/16 1.6 1-1/2 x 2.6 38 x 65.8 480
YT-1630F 7x7 1/16 1.6 1.2 x 2.08 30 x 52 480
YT-1625F 7x7 1/16 1.6 1 x 1.73 25.4 x 44 480
YT-1238F 7x7 3/64 1.2 1-1/2 x 2.6 38 x 65.8 270
YT-1230F 7x7 3/64 1.2 1.2 x 2.08 30 x 52 270
YT-1225F 7x7 3/64 1.2 1 x 1.73 25.4 x 44 270
YT-1220F 7x7 3/64 1.2 4/5 x 1.39 20 x 34.6 270



Mesh Orientation:

Stair Railing infills stainless steel rope netting is an important and diverse field of application for stainless steel wire ropes and stainless steel cable netting. The balcony infills serve as fall protection and meet the construction requirements with low dead weight.

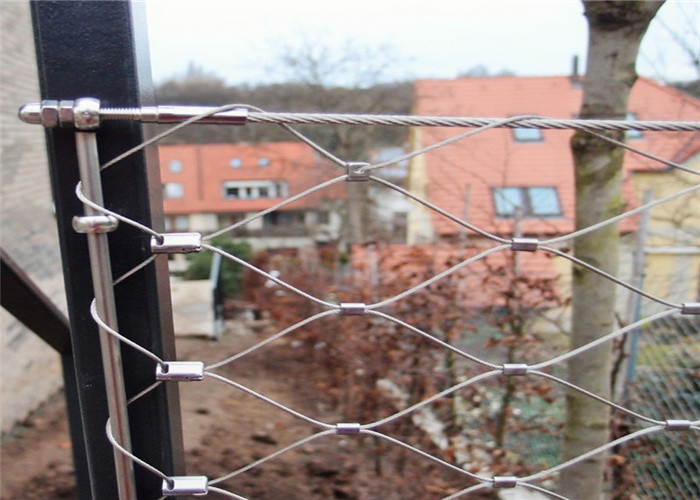

There are two kinds mesh orientation,one is Horizontal and the other is  Vertical.Please check the following details.

60*105mm Stainless Steel Ferrule Rope Mesh Diamond Stair Railing Infill Netting Safety 0

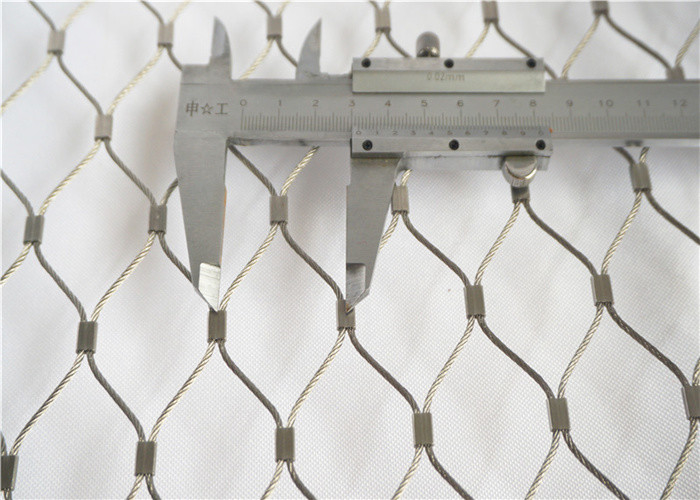

Stainless Steel Rope Netting In Red Color:

60*105mm Stainless Steel Ferrule Rope Mesh Diamond Stair Railing Infill Netting Safety 1

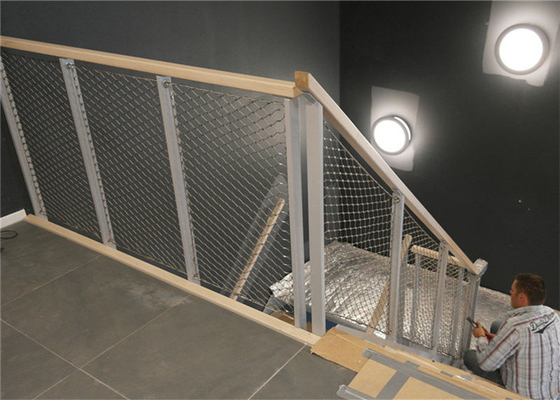

Stainless Steel Rope Netting Project Show:

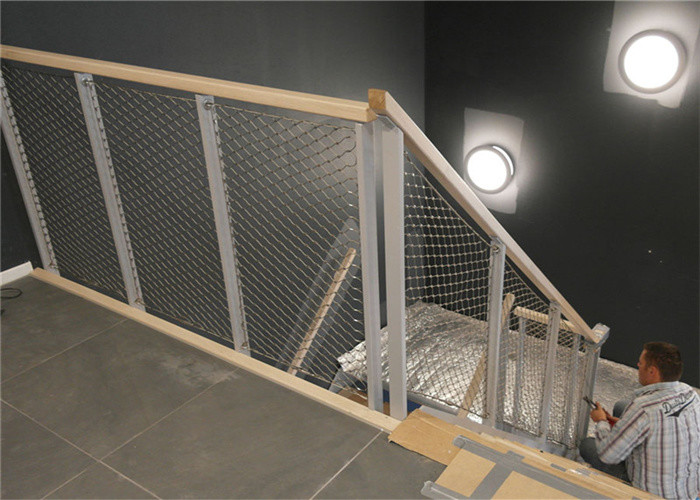

Balustrade Stair Railing Stainless Steel Rope Netting For Safety Details:



Material : AISI 316

Cable diameter : 1.6mm (7*7)

Hole Aperture:40*40mm

Panel Size:0.95m(H) X 3m(L)

Mesh End Type: H3

Normal Break : 676 Ibs



60*105mm Stainless Steel Ferrule Rope Mesh Diamond Stair Railing Infill Netting Safety 2





Advantages :





1.solid and durable.

2. The mesh Hole size and diameter can be modified.

3. corrosion resistance.

4. High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.

5. Anti-corrosive, resist the rust, can be repeated use.

6.All models, shapes and materials can be customized. We have our own factory



How to place the order ?



60*105mm Stainless Steel Ferrule Rope Mesh Diamond Stair Railing Infill Netting Safety 3



What is feature of  stainless steel wire rope netting ?

1. Mesh designed under high break loading capacity.corrosion resistant.

2. 100% install guarantee.precsion panel dimension.

3. Suit tube frame or tension rope structure.

4. Irregular shape,large piece of mesh can be manufactured.



What kinds of project we served ?

Railing,balustrade,balcony,staircase infill.park fence.zoo fence.zoo bird aviary netting.green wall trellis.safety net on bridge.drop safet net.helideck mesh.



Where the mesh we sold?

United Kindom,USA,Canada,Czech,Slovakia,Spain,France,Creaze,Singapore,Japan,Australia etc.



Our Promise:

1.Delivery within delivery time.
2.If you want to have your own mark on the product, we will protect your information.
3.The best price is to retain the most sincere customers.
4.24 hours online, please contact us if you have any questions.



60*105mm Stainless Steel Ferrule Rope Mesh Diamond Stair Railing Infill Netting Safety 4
