High Flexibility 25x25mm Stainless Steel Rope Mesh Safety Staircase Net For Fence

Basic Information
Place of Origin: China
Brand Name: Yuntong
Certification: CE,SGS
Model Number: YT-2060F
Minimum Order Quantity: 5 Square Meter
Price: Negotiable
Packaging Details: Paper carton inside,wooden case outside or as customer's requirements
Delivery Time: 5-7work days after receiving the advance payment
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 3000 square meters per week
Product Name: Staircase Stainless Steel Wire Rope Mesh Net Hole Shape: Diamond
Rope Diameter: 1.6mm,2.0mm Material: SS 304 , SS 316, SS 316L
Panel Size: Customized In Width And Height Mesh Aperture: 40*40mm,50*50mm,60*60mm,Custom
Color: Silver,black,white,blue,can Be Customized Usage: Staircase,railing Mesh,balustrade Mesh,safety Mesh
High Light:

25x25mm stainless steel rope mesh

,

high flexibility stainless steel rope mesh

,

safety staircase net ss rope mesh



High Flexibility Safety Staircase Stainless Steel Wire Rope Mesh Net For Fence




Product Description:



Staircase stainless steel wire rope mesh net for fence usually made of stainless steel ferrule rope mesh, it is flexible and toughness.It can be installed to adapt to any shape, and the staircase stainless steel wire rope mesh net has an almost transparent appearance and excellent light transmission, it's strong,x - tend and beautiful, more and more popular used in many areas, such as balcony protection mesh, playground safety mesh, fall protection mesh, bridge balustrade nets,architecture mesh,green plant climbing mesh,green wall,zoo enclosure, etc.





Material AISI304,AISI316,AISI304L,AISI316L
Mesh Type Stainless steel ferrule rope mesh
Application Staircase mesh,protection nets,anti-fall safety nets,railing infill mesh,balustrade and balcony mesh,zoo enclosure,etc.
Features Flexible,high tensile,safety,soft,x-tend,support customization
Cable Structure 7*7,7*19
Surface Treatment Polish,pvc coated
Mesh Size 0.8x50m,1x1m,1x2m,1x5m,1.5x1m,1.5x3m,2x3m,2x6m,support customization
Mesh Opening Shape Diamond
Wire Diameter 1.2mm,2.0mm,2.4mm,3.0mm,3.2mm,4.0mm
Mesh Opening 25x25mm,30x30mm,40x40mm,50x50mm,60x60mm,80x80mm,100x100mm
Color White,stainless steel primary color,black,red,blue,custom
Sample Free,but the customer need to pay for the shippingcost
Certificate CE,SGS


Stainless Steel Wire Rope Mesh Net Parameters :


SS 304 316 stainless steel wire rope mesh net is the important method for staircase fall protection, it's made of flexible stainless steel wire ropes, suitable for each stairs with different grades, angles etc, especially for the oblique courses of stairs or spiral staircases.



Stainless Steel Wire Rope Mesh Net

Item Rope Diameter Mesh Hole Size Normal Break
  inch mm inch mm lbs
YT-3212F 1/8 3.2 4.75 x 4.75 120 x 120 1600
YT-3210F 1/8 3.2 4 x 4 102 x 102 1600
YT-3290F 1/8 3.2 3.55 x 3.55 90 x 90 1600
YT-3276F 1/8 3.2 3 x 3 76 x 76 1600
YT-3250F 3/32 2.4 2 x 2 51 x 51 1600
YT-2410F 3/32 2.4 4 x 4 102 x 102 920
YT-2490F 3/32 2.4 3.55 x 3.55  90 x 90 920
YT-2476F 3/32 2.4 3 x 3 76 x 76 920
YT-2460F 3/32 2.4 2.4 x 2.4 60 x 60 920
YT-2450F 3/32 2.4 2 x 2 51 x 51 920
YT-2076F 5/64 2.0 3 x 3 76 x 76 676
YT-2060F 5/64 2.0 2.4 x 2.4 60 x 60 676
YT-2050F 5/64 2.0 2 x 2 51 x 51 676
YT-2038F 5/64 2.0 1-1/2 x 1-1/2 38 x 38 676
YT-1676F 1/16 1.6 3 x 3 76 x 76 480
YT-1650F 1/16 1.6 2 x 2 51 x 51 480
YT-1638F 1/16 1.6 1-1/2 x 1-1/2 38 x 38 480
YT-1630F 1/16 1.6 1.2 x 1.2 30 x 30 480
YT-1625F 1/16 1.6 1 x 1 25.4 x 25.4 480
YT-1238F 3/64 1.2 1-1/2 x 1-1/2 38 x 38 270
YT-1230F 3/64 1.2 1.2 x 1.2 30 x 30 270
YT-1225F 3/64 1.2 1 x 1 25.4 x 25.4 270





Different Mesh Types :


There are two kinds of mesh types. one is ferrule type, the other is knotted also named inter -  woven type.You can choose anyone you prefer.


Mesh Types Wire Diameter Cable Structure Details Material
Knotted Type 1.2mm,1.5mm,1.6mm,2.0mm 7*7 High Flexibility 25x25mm Stainless Steel Rope Mesh Safety Staircase Net For Fence 0 SS304,SS304L,SS316,SS316L
Ferruled Type 1.2mm,1.5mm,1.6mm,2.0mm 7*7
Knotted Type 2.0mm,2.5mm,3.0mm,3.2mm,4.0mm 7*19    High Flexibility 25x25mm Stainless Steel Rope Mesh Safety Staircase Net For Fence 1
Ferruled Type 2.0mm,2.5mm,3.0mm,3.2mm,4.0mm 7*19

Mesh Orientation : Horizontal and Vertical



High Flexibility 25x25mm Stainless Steel Rope Mesh Safety Staircase Net For Fence 2



Features:



Staircase stainless steel wire rope mesh net used in the outside area, especially in humid and rainy places, the materials need to be weather resistant, high grade stainless steel wire ropes are rust proof and adapt to temperature, furthermore, it has high strength, can effectively resist impact, to provide the max. security.

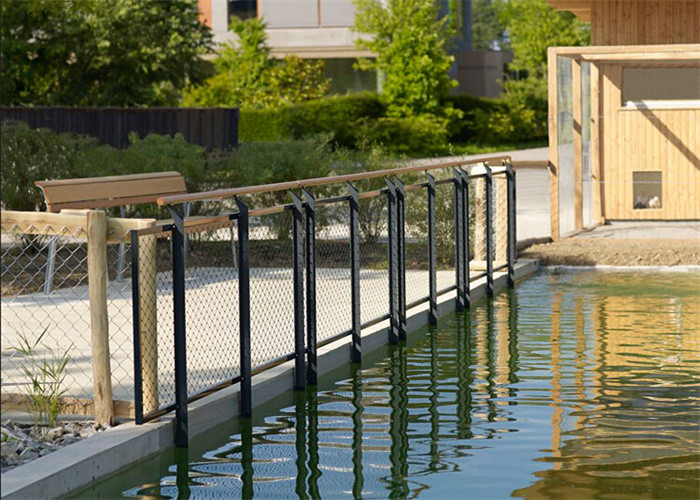

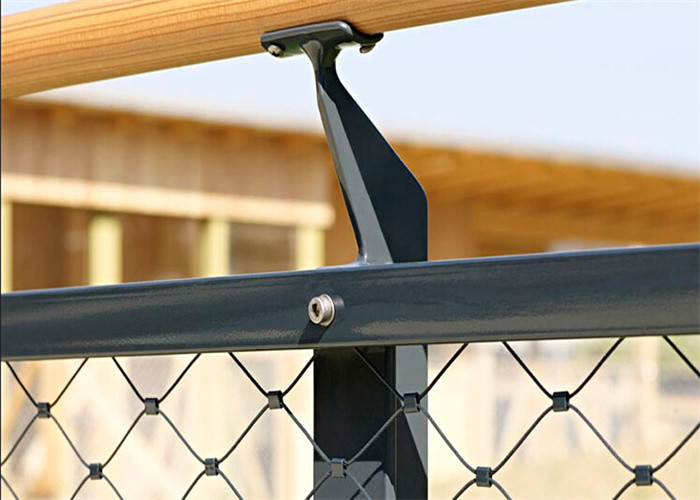

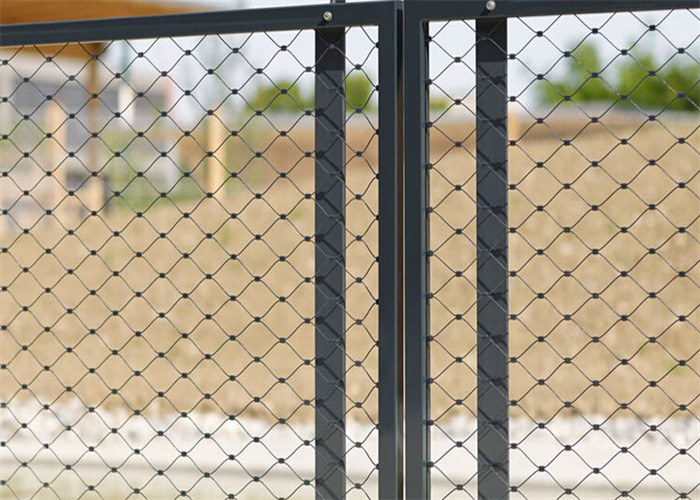

Project Shows:

High Flexibility 25x25mm Stainless Steel Rope Mesh Safety Staircase Net For Fence 3High Flexibility 25x25mm Stainless Steel Rope Mesh Safety Staircase Net For Fence 4



Packing And Delivery Details :




 High Flexibility 25x25mm Stainless Steel Rope Mesh Safety Staircase Net For Fence 5



​FAQ:



Q : Can I get a piece of your products sample?
A : Yes, If the sample is available, it will be free and be provided anytime. If unavailable, need to customize.


Q : What type of metal mesh does Yuntong offer?
A : we are specialized in the production of metal wire mesh,such as the stainless steel wire rope mesh,decorative net,metal aluminum mesh.We have a professional production line of metal wire mesh .


Q : Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.


Q : What are fittings and how are they used?
A : We have hundreds of fittings for our stainless steel wire rope mesh products. Different application scenarios of rope mesh comes with different accessories,we will provide you with a detailed installation scheme.



Q : Which countries do you export to?

A : Our products are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,South Korea and so on.
